XL-Specialized XL 60-MFG: Mini-deck with hatbox

Last Updated: 04/27/2022 07:44 AM

Detailed Specs

Additional Information

Commercial Trailers
XL Mechanical Mini-Deck
60,000 LB OVERALL, CONCENTRATED: 60,000 LB IN 16'
48'
102"
MECHANICAL DETACHABLE FULL-WIDTH 10' LONG
40" - 52"
18"
82"
12"
4"
25,000 LB AIR RIDE, RAISE AND LOWER VALVE, MANUAL RIDE HEIGHT CONTROL
(2) 25,000 LB NOMINAL, HUB PILOT, OUTBOARD DRUMS, (2) PAIR SPRING BRAKES
54"
16 1/2" X 7"
8.25 X 22.5 STEEL RIMS, 255/ 70R/ 22.5 TIRES

Description

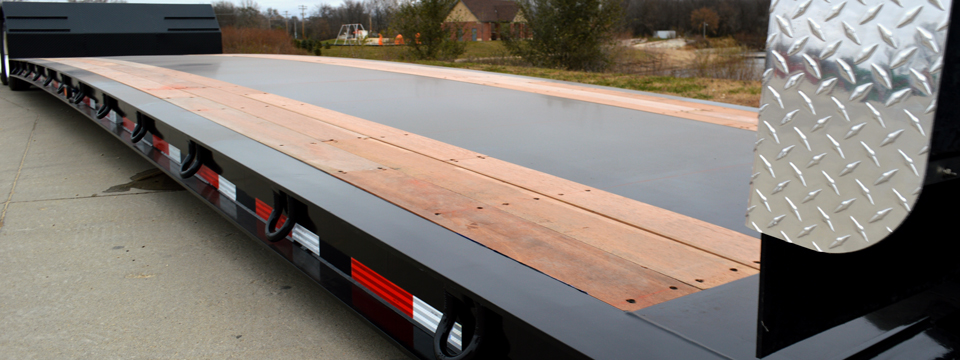

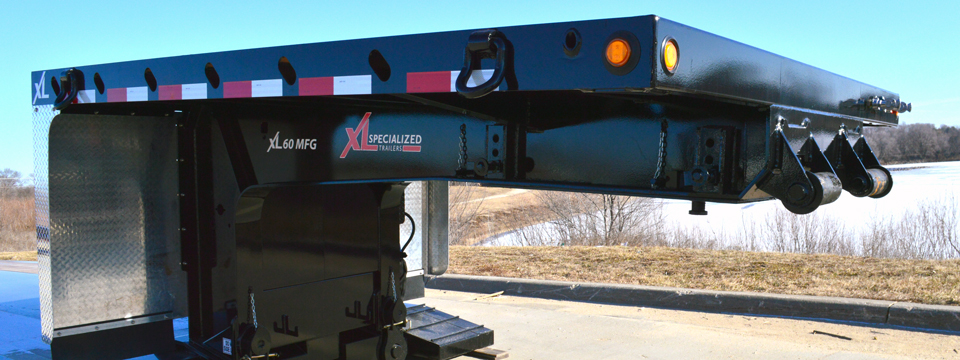

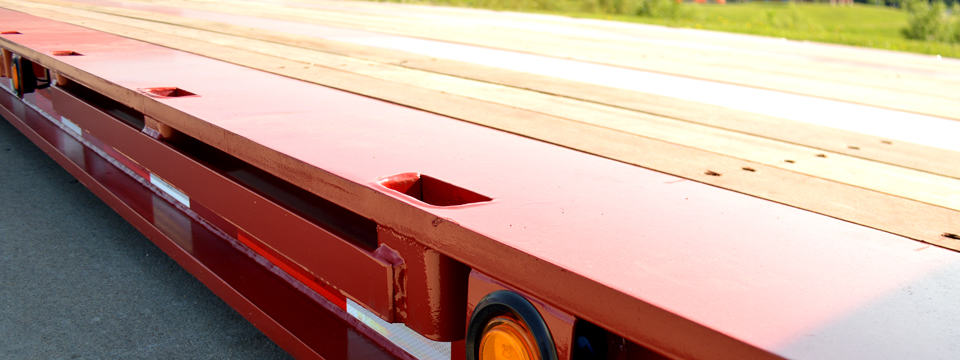

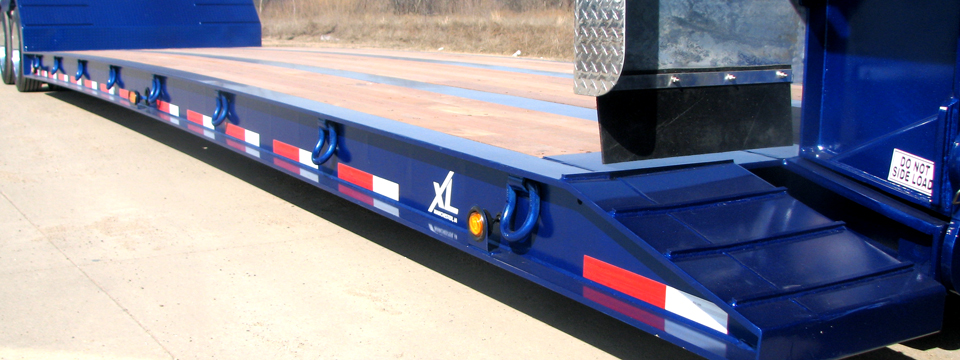

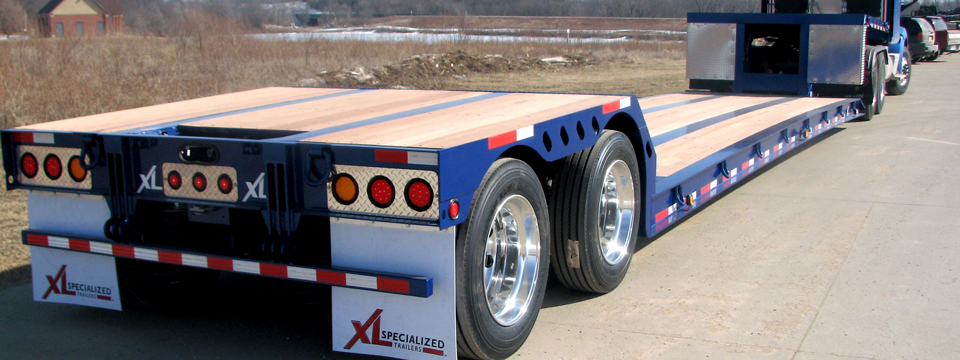

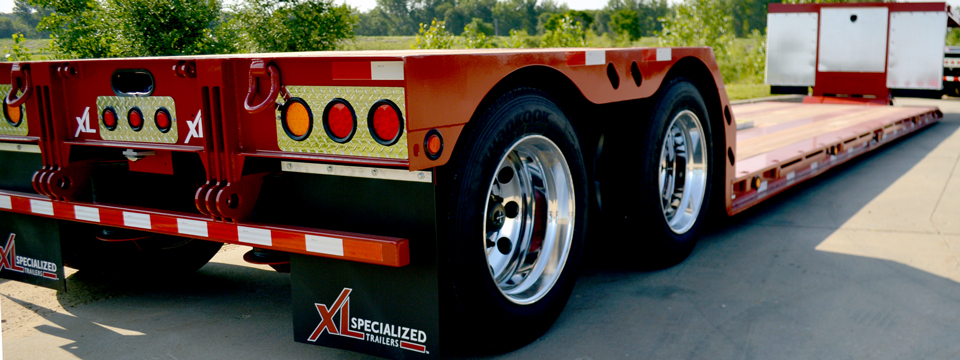

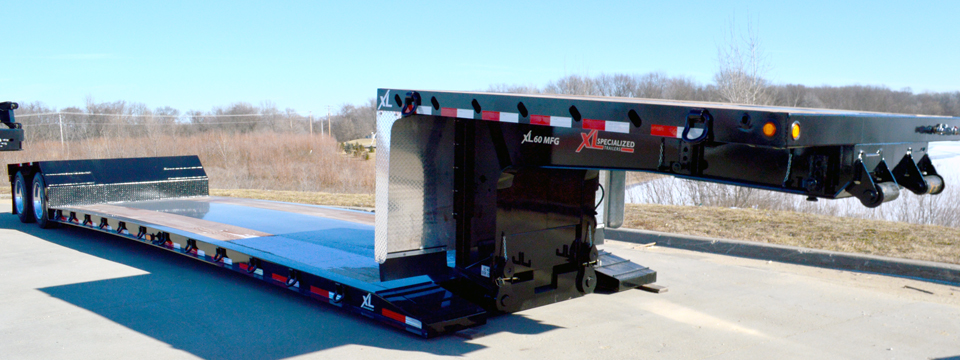

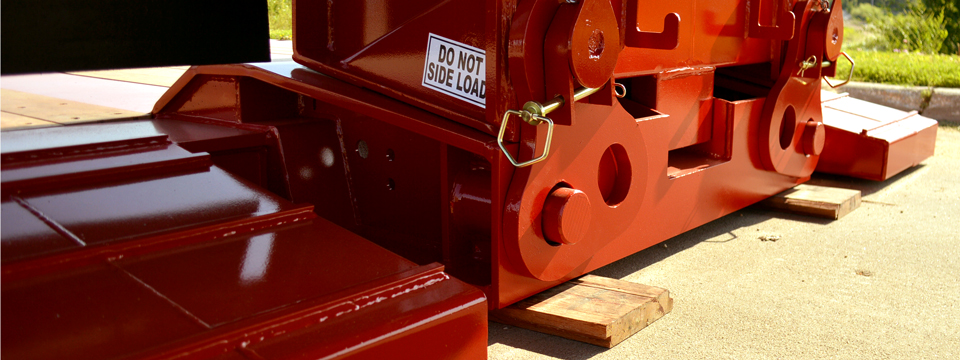

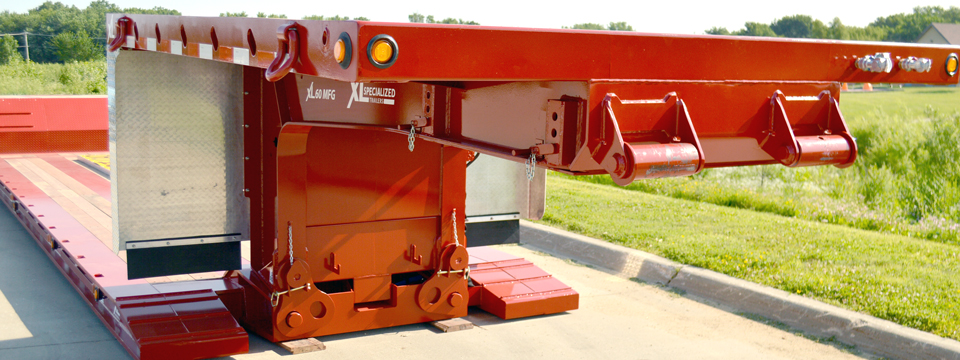

The XL 60 Mechanical mini-deck lowboys give you ultimate versatility with a loaded deck height of 12” and an empty weight that easily allows you to scale out your maximum payload. XL Mini-deck lowboys are available with a hydraulic gooseneck, mechanical gooseneck or mechanical gooseneck with an air hatbox. The hatbox option gives you the ability to raise and lower the neck without using hydraulics.
